Product
Shell & Tube Heat Exchangers
We started out in 1989 building shell & tube exchangers, and they remain our core trade. Each one is rated in HTRI, verified mechanically in PV Elite and fabricated under our own ASME U or U2 stamp. The range runs from small booster coolers to heavy bellows-equipped units for refineries and gas processing plants.
Why buyers pick it
Rated in HTRI
Our 25-strong process group brings 12 years of hands-on HTRI work to every thermal design.
ASME U & U2 stamps
Fabricated and stamped under authorisations we hold ourselves; National Board registration available on request.
Proven at pressure
Our track record includes exchangers hydro-tested to 425 bar.
Large, heavy sections
We roll shells as big as 6 m diameter and machine tubesheets as thick as 400 mm.
Gallery
Types and configurations
Fixed tubesheet with expansion bellows
Absorbs wide shell-to-tube temperature differentials.
U-tube bundle
Tubes expand freely; a sound choice when tube-side pressure is high.

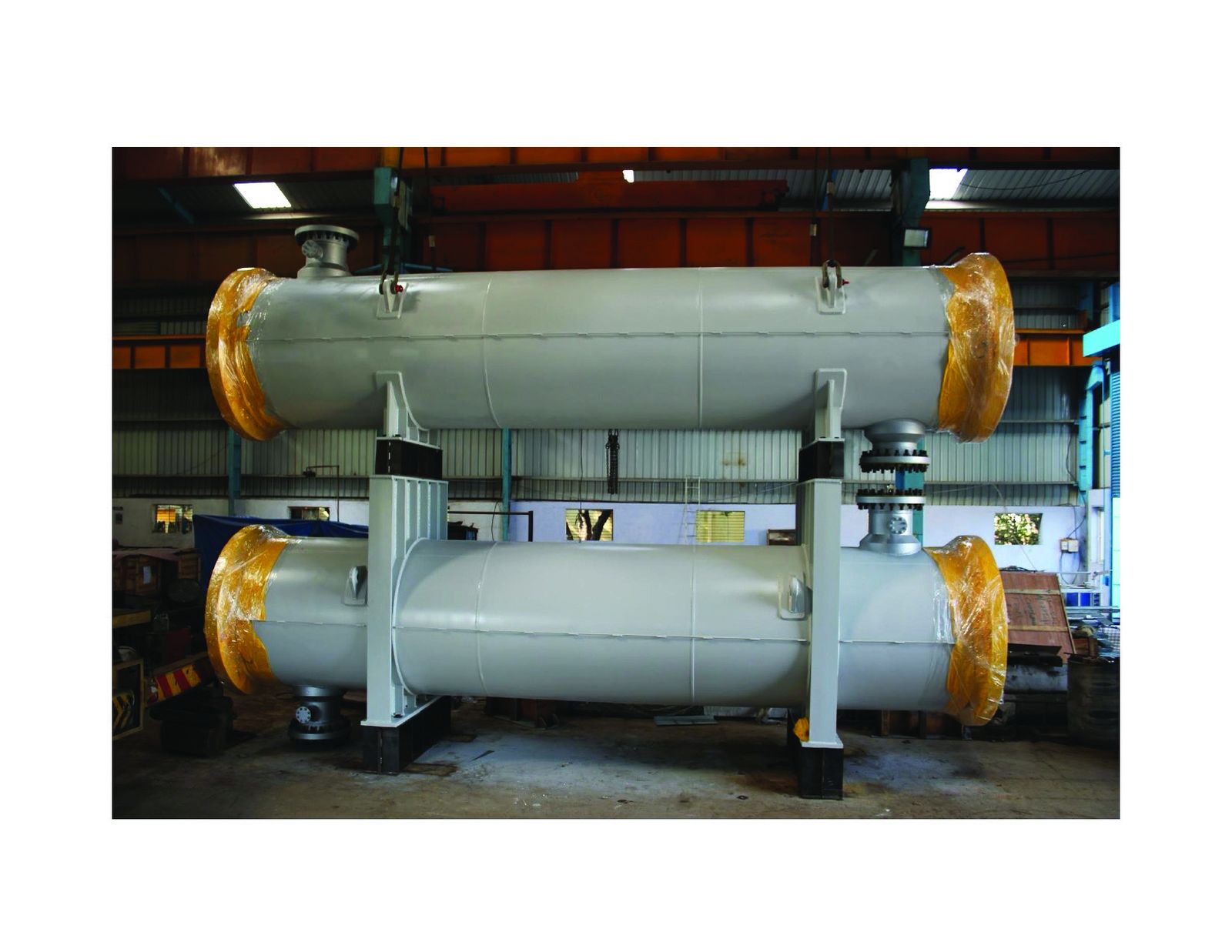

Floating head & stacked arrangements
Pull-out bundles and stacked sets, for example the 35-tonne unit we built for IOCL Panipat.
Specifications
| Codes of construction | ASME Section VIII Div. 1 & 2 · TEMA · API |
|---|---|
| Code stamps | ASME U, U2 & R · National Board · IBR |
| Proven hydrotest pressure | 425 bar achieved |
| Rolled shell diameter | 6 m maximum |
| Tubesheets | 400 mm thick, 3 m dia. maximum |
| Engineering tools | HTRI thermal · PV Elite mechanical |
Materials of construction
Carbon steelLTCS & LASSS 316LSS DuplexTitaniumMonel 400Incoloy 825Inconel 625Further alloys to order
Frequently asked questions
Do you make shell & tube units fitted with expansion bellows?
We do — bellows-type fixed tubesheet exchangers are among our main lines. A recent job for KLJ Petroplast was a stainless steel exchanger combining an expansion bellow with an internal coil.
Do you ship to our country, wherever the site is?
Yes, we export worldwide: the Middle East, Africa, Asia, Europe, the Americas and the CIS. Both of our plants sit in Coimbatore, roughly 195 km by road from Cochin, and we also dispatch through Tuticorin, Chennai and Nhava Sheva. Every unit is crated for ocean freight and can be routed by sea to any port you name. Operators such as ADNOC, PDO Oman, OQ, QAPCO, Kuwait Oil Company and Ma'aden already run our equipment.
May a third-party inspector or our own engineer witness testing?
Certainly. Bureau Veritas, Lloyd's Register, TÜV NORD, SGS and HSB inspect in our shops routinely, among other agencies, and we welcome your own inspector at any hold point.
Industries that use it
