Shell & Tube Heat Exchangers
Thermal sizing in HTRI, mechanical checks in PV Elite, fabrication to TEMA and ASME VIII — up to bellows-type units with 400 mm tubesheets.
See specifications
Product
Hairpin Heat Exchangers

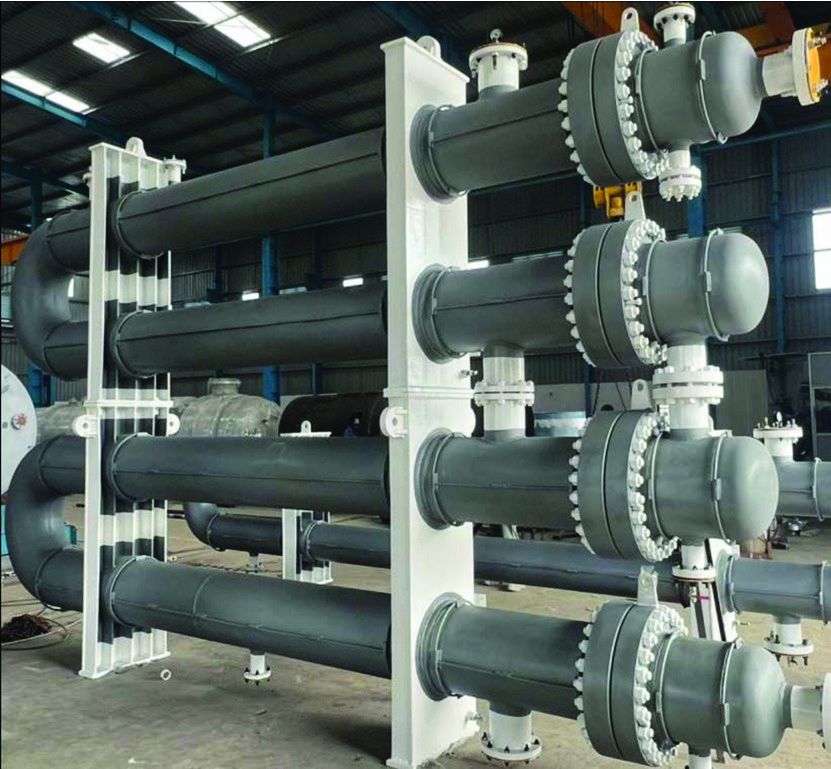

With a hairpin you get genuine counterflow in a compact unit that stacks neatly. We make single-tube and multi-tube designs, singly or as multi-section banks. A recent set was supplied to Petroleum Development Oman by way of Fortune Engineering & Energy Services.
Why buyers pick it
Genuine counterflow
Deals with temperature crosses with no need for additional shells.
Stacks neatly
Multi-section banks cut the plot area needed on congested sites.
Pressure duty
A natural fit for high-pressure gas and hydrocarbon streams.
Pull-out bundles
Bundles withdraw easily for inspection and cleaning.
Gallery
Specifications
| Codes of construction | ASME Section VIII Div. 1 & 2 · TEMA · API |
|---|---|
| Code stamps | ASME U, U2 & R · National Board · IBR |
| Proven hydrotest pressure | 425 bar achieved |
| Engineering tools | HTRI thermal · PV Elite mechanical |
Materials of construction
Carbon steelLTCS & LASSS 316LSS DuplexTitaniumMonel 400Incoloy 825Inconel 625Further alloys to order
Frequently asked questions
When should I choose a hairpin over shell & tube?
Choose a hairpin if the duty has a temperature cross, if the load is small to medium, or if high pressure would push a shell & tube design into heavy, costly territory.
Do you ship to our country, wherever the site is?
Yes, we export worldwide: the Middle East, Africa, Asia, Europe, the Americas and the CIS. Both of our plants sit in Coimbatore, roughly 195 km by road from Cochin, and we also dispatch through Tuticorin, Chennai and Nhava Sheva. Every unit is crated for ocean freight and can be routed by sea to any port you name. Operators such as ADNOC, PDO Oman, OQ, QAPCO, Kuwait Oil Company and Ma'aden already run our equipment.
May a third-party inspector or our own engineer witness testing?
Certainly. Bureau Veritas, Lloyd's Register, TÜV NORD, SGS and HSB inspect in our shops routinely, among other agencies, and we welcome your own inspector at any hold point.
Industries that use it
Related products
Air Cooled Heat Exchangers (Fin Fan Coolers)
Fin fan coolers to API 661, finned on our own extruded and embedded lines and already delivered to ADNOC, PDO Oman and NNPC.
See specifications
Double Pipe Heat Exchangers
Pipe-within-a-pipe exchangers suited to modest heat loads, high pressures and services that demand pure counterflow.
See specificationsHave a shutdown date or project deadline?
Give us the date your equipment must be on site. We will plan design, fabrication, inspection and shipping backwards from it and tell you honestly if it is achievable.
