Shell & Tube Heat Exchangers
Thermal sizing in HTRI, mechanical checks in PV Elite, fabrication to TEMA and ASME VIII — up to bellows-type units with 400 mm tubesheets.
See specifications
Product
Air Cooled Heat Exchangers (Fin Fan Coolers)

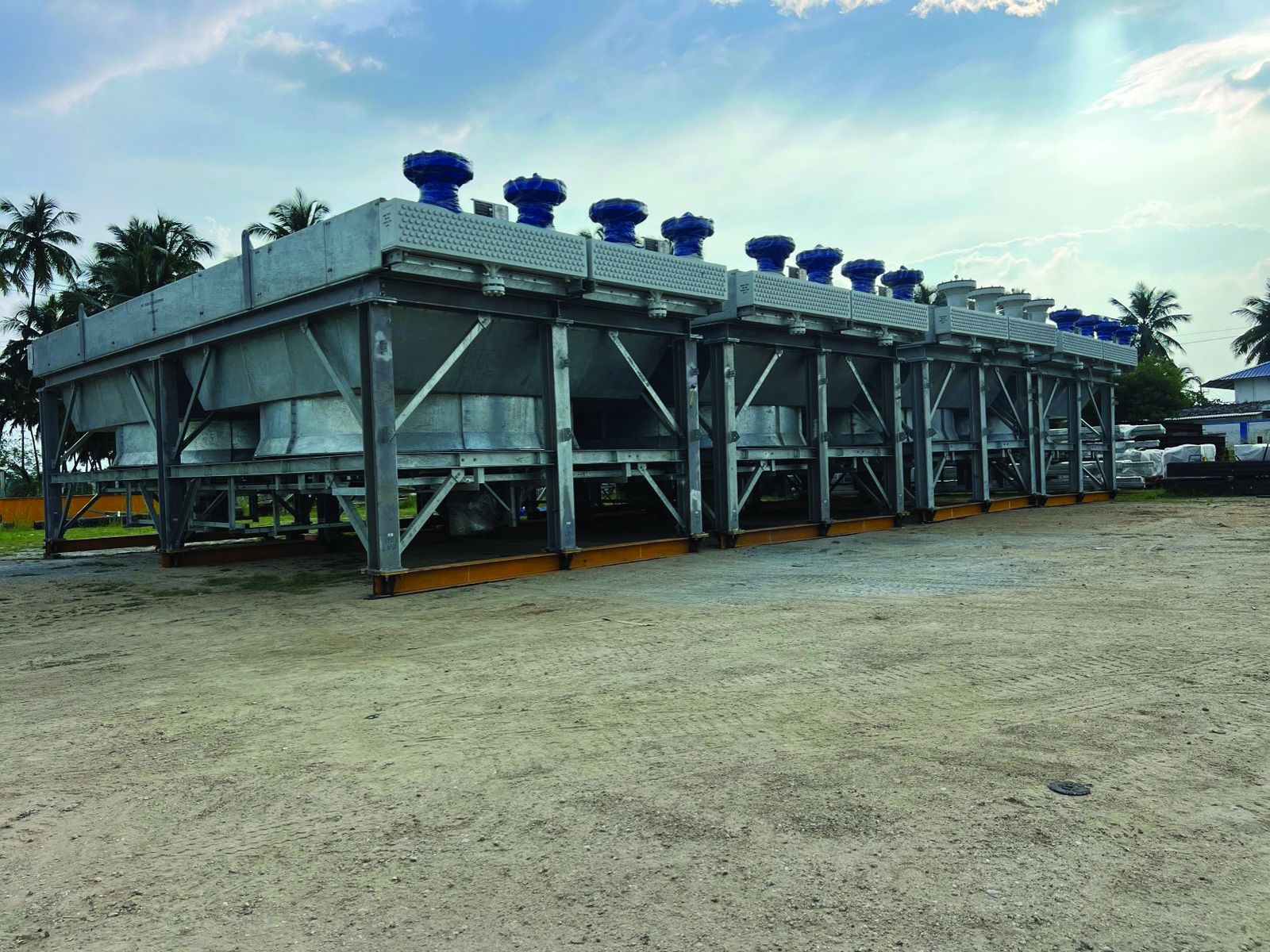

No product line has grown faster in our export business than air coolers. Tubes up to 16 m are finned in-house on three extruded-fin machines plus one embedded-fin machine. Shipped modules include units for ADNOC via Target, for PDO Oman via NOV and for NNPC via Global Processing Systems, and EIL added us to its approved vendor list for air coolers in 2023.
Why buyers pick it
Own finning lines
G, L, LL and KL fins, extruded or embedded, on tube lengths to 16 m.
Built for heat
Rated for high design ambients in hot climates, on desert and offshore sites alike.
Alloy bundles
Bundles in carbon steel, SS 316L and Incoloy 825 are already operating in the field.
Sub-zero ready
Winterised air coolers for freezing locations have been part of our range since 2024.
Gallery
Types and configurations
Forced draught
Fans sit under the bundle, keeping maintenance straightforward.
Induced draught
Fans mounted over the bundle give more even airflow.
Winterised designs
Fitted with air recirculation and heating for sites that freeze.
Specifications
| Governing code | API 661 with ASME VIII |
|---|---|
| Fin tube length | 16 m max · G, L, LL, KL fins, extruded or embedded |
| Proven hydrotest pressure | 425 bar achieved |
| Code stamps | ASME U, U2 & R · National Board · IBR |
| Client approvals | EIL-approved for air coolers since 2023 · ADNOC-approved vendor |
Materials of construction
Carbon steelLTCS & LASSS 316LSS DuplexTitaniumMonel 400Incoloy 825Inconel 625Further alloys to order
Frequently asked questions
Which export air cooler projects have you completed?

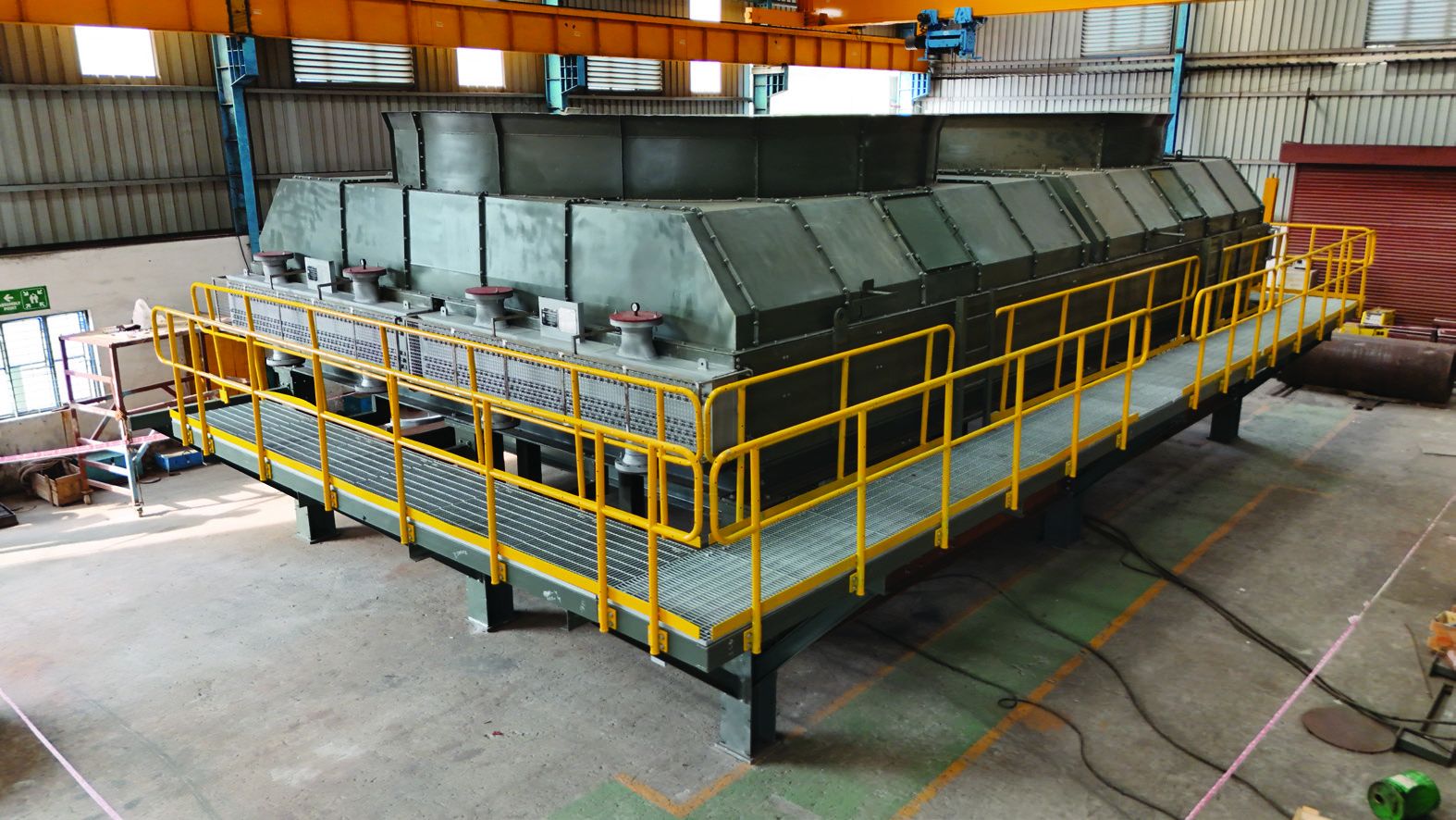

Recent deliveries cover Incoloy 825 coolers for ADNOC (via Target), SS 316L coolers supplied to PDO Oman (via NOV) and a set of three carbon steel modules destined for Jordan.
Do you ship to our country, wherever the site is?
Yes, we export worldwide: the Middle East, Africa, Asia, Europe, the Americas and the CIS. Both of our plants sit in Coimbatore, roughly 195 km by road from Cochin, and we also dispatch through Tuticorin, Chennai and Nhava Sheva. Every unit is crated for ocean freight and can be routed by sea to any port you name. Operators such as ADNOC, PDO Oman, OQ, QAPCO, Kuwait Oil Company and Ma'aden already run our equipment.
May a third-party inspector or our own engineer witness testing?
Certainly. Bureau Veritas, Lloyd's Register, TÜV NORD, SGS and HSB inspect in our shops routinely, among other agencies, and we welcome your own inspector at any hold point.
Industries that use it
Related products
Double Pipe Heat Exchangers
Pipe-within-a-pipe exchangers suited to modest heat loads, high pressures and services that demand pure counterflow.
See specifications
Hairpin Heat Exchangers
Single-tube and multi-tube hairpins built as stacked banks, including a set delivered to PDO Oman via Fortune Engineering.
See specificationsHave a shutdown date or project deadline?
Give us the date your equipment must be on site. We will plan design, fabrication, inspection and shipping backwards from it and tell you honestly if it is achievable.
